TUMAKER MINI MODULAR

( Pellets / Filament )

Compact, Professional and Versatile

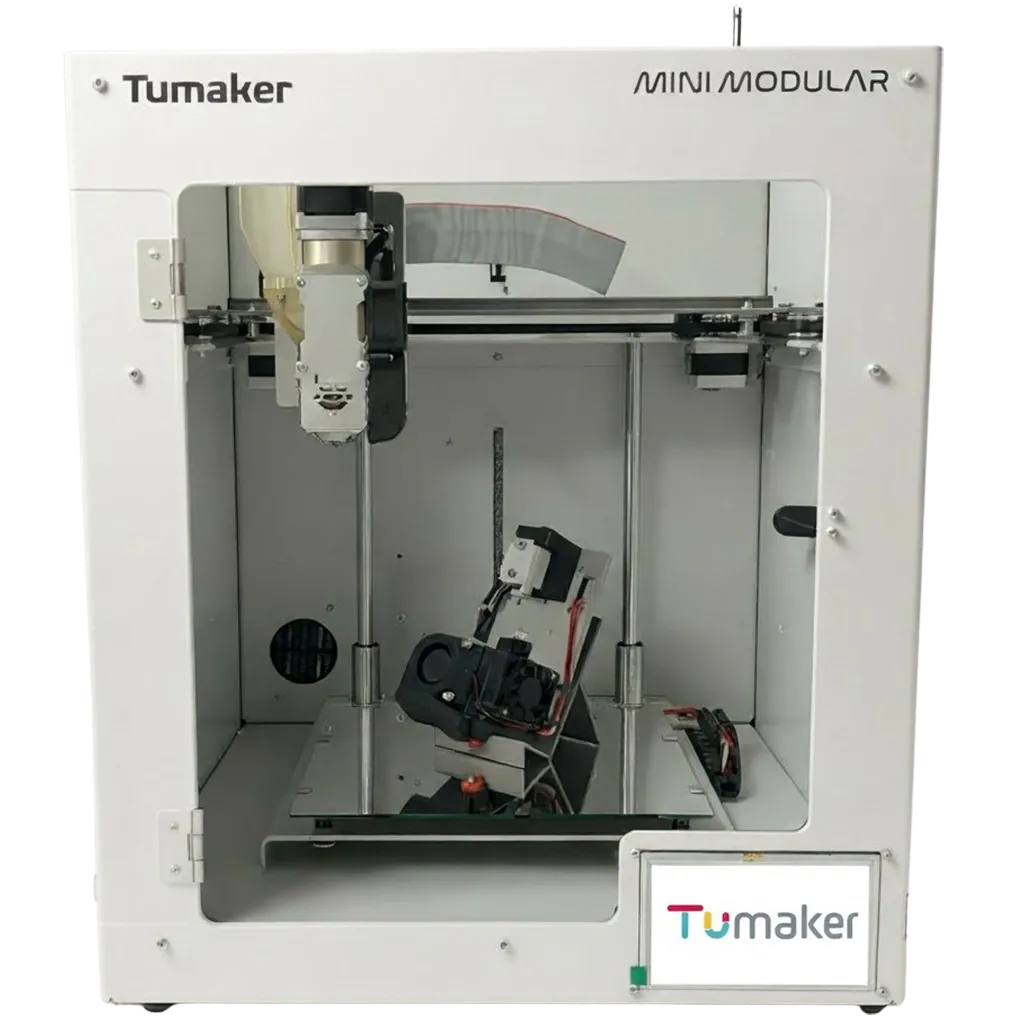

Equipos de manufactura aditiva industrial Indart 3D en un entorno de fábrica limpio

Professional 3D Printer with Modular Technology

Pellets and filament in a single machine.

The Tumaker Mini Modular 3D printer with interchangeable printhead is now a reality. This printer boasts the reliability and robustness characteristic of the Tumaker brand. The Mini Modular delivers top performance for professional applications in the smallest size in the Tumaker range.

The ability to work in the industrial sector with a machine significantly smaller than the competition makes it highly manageable and easy to handle. These features make it the perfect machine for getting started in the world of additive manufacturing.

Pellet Extruder:

Advanced and economical 3D printing

3D printing with pellets expands the possibilities within additive manufacturing, and the Tumaker Mini Modular has been developed to take full advantage of this technology. This system uses direct feeding of polymers in granular format, avoiding their transformation into filament, which reduces costs and preserves the material’s properties.

Furthermore, its ability to work with recycled polymers and high-performance materials promotes sustainability and broadens the range of applications in areas such as research, design, and industrial production.

Key features of the pellet head:

* Compatible with the Pellet Feeder

* Recommended pellet size: 3 to 5 mm in diameter

* Maximum feed head temperature: 300°C

* Adjustable nozzles: 0.4 mm | 0.6 mm | 0.8 mm (included) | 2.0 mm | 4.0 mm | 5.0 mm

Filament Extruder: Precision in a Compact Format

Only with pellet 3D printing can you work with materials that aren’t available in filament form. This printer also allows you to use the Direct Drive HR print head for filament extrusion, enabling you to take advantage of both technologies with a single machine.

Filament head features:

* Compatible with spools up to 8 kg.

* Maximum nozzle temperature: 300°C.

* Interchangeable nozzles: 0.15 mm | 0.25 mm | 0.4 mm (included) | 0.6 mm | 0.8 mm.

* Optimized materials: PLA, ABS, ASA, PET-G, Nylon, TPU, and others.

Small in Size, Big on Performance

Only by using 3D pellet printing is it possible to use materials that are not available in filament form. Furthermore, this printer allows you to incorporate the Direct Drive HR print head, which enables you to extrude filament and thus combine both technologies in a single machine.
